Swing Gate Opener Automatic Full Solar Power Kit Remote Control

The Tradesman Solar Swing Gate Opener features a DC 24V 60W motor with higher efficiency, lower power consumption, and greater safety. It is designed as the best value performance kit for Medium Duty swing gates between 450 KG and 650KG in weight.

This ultra-quiet gate motor will bring your family an easier and more comfortable life and comes with a 40W solar panel. It is great choice if you have no access to power out at the gate or are rethinking your energy.

Its “auto-close” function with adjustable closing time delay ultimately secures the property after you leave while stops in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.

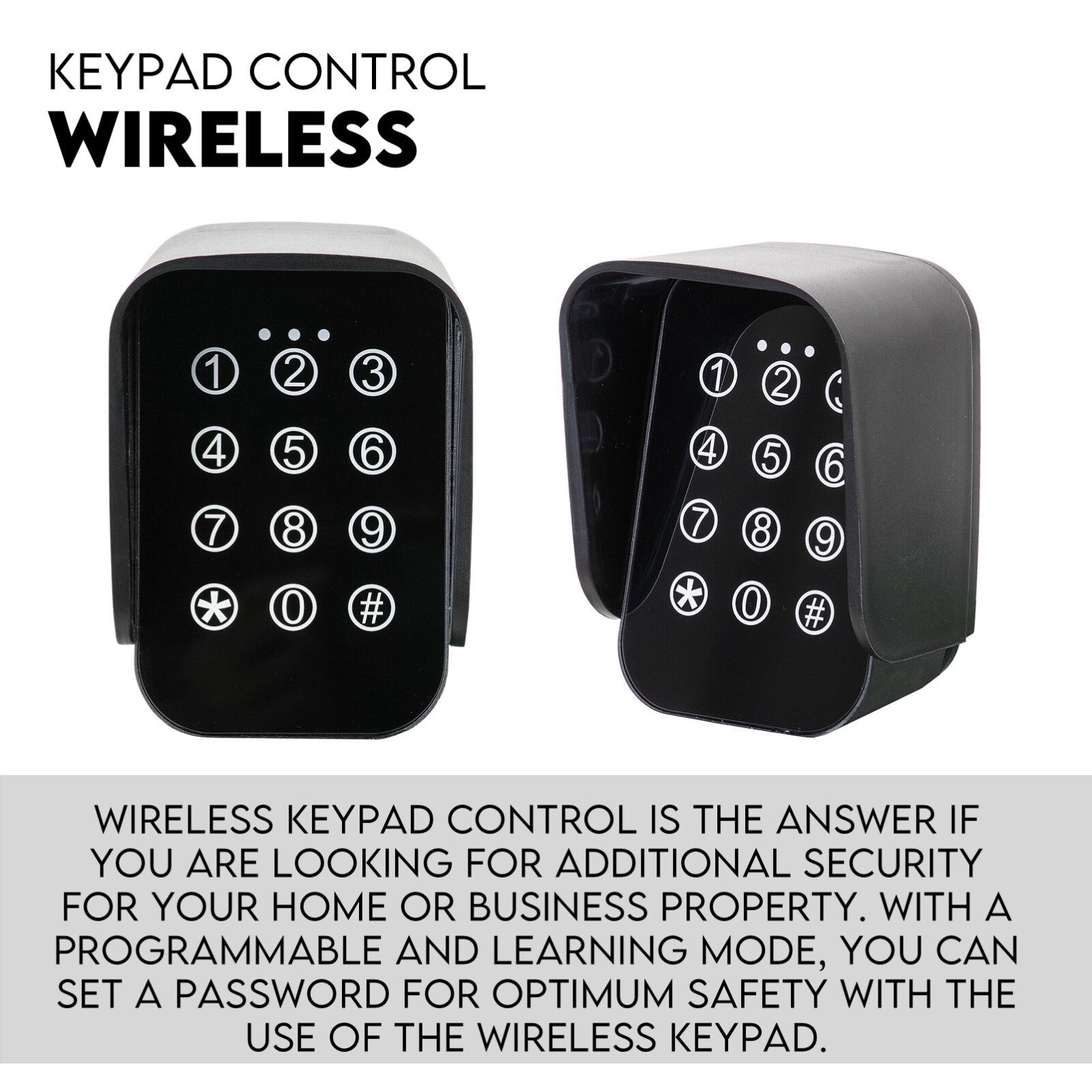

The Wireless Keypad Control is the answer if you are looking for additional security for your home or business property. With a programmable and learning mode, you can set a password for optimum safety with the use of the wireless keypad. The push button, on the other hand, will supply a stable operation for your gate opener.

The Gate Opener can be configured to allow smooth noiseless operation and can be configured to enable open or close condition as default.

The gate is allowed to open inwards and outwards viewed from inside property. Kindly note that the max. gate length capability is inversely proportional to the gate weight.

This product must be installed by well-trained skilled personnel in compliance with the safety regulations the field of residential and commercial swing gate opener devices. Unqualified personnel may damage the instruments and cause harm to the public.

*** Remote control batteries not included

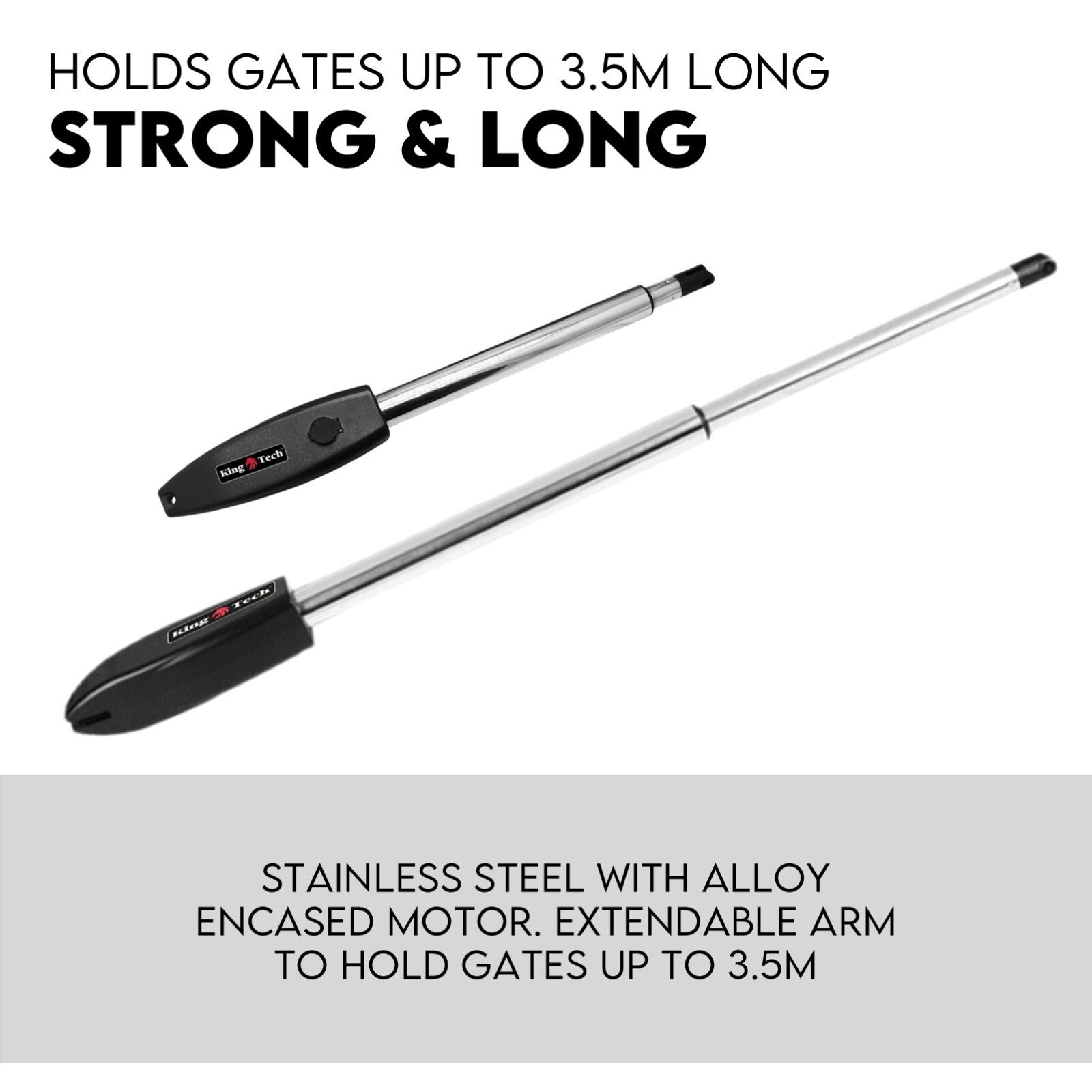

• Industrial-strength stainless-steel swing arm
• Stylish, weatherproof design
• Suitable for gates between 3.5m - 5m in length

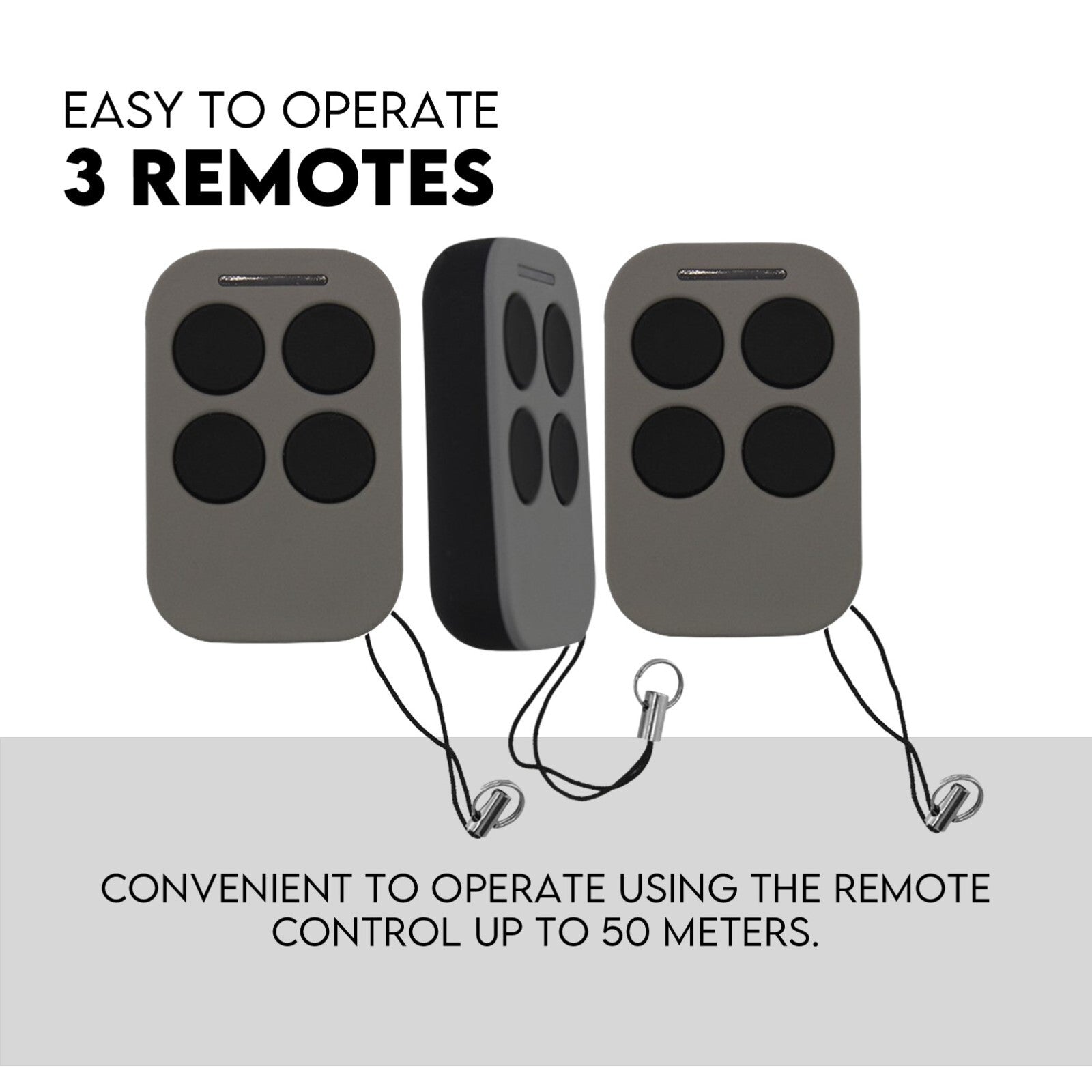

• 50m-range remote controls
• Intelligent digital control box
• Adjustable speed
• Adjustable Auto-close time
• Gentle Start function
• Low power consumption
• Manual-release backup
• Gate and post brackets included

Specifications

Voltage: 24V
Solar Panel: 40W
Max Per Leaf Gate: Up to 5M
Backup Batteries: 12V 9AH
Max single-leaf weight：450 KG - 650KG
Rotational speed：300 RPM
Waterproof Grade: IP55
Remote Frequency: 433.92mhz
Please Note: Professional installation is recommended. Wiring will need to be purchased separately to suit your set up.

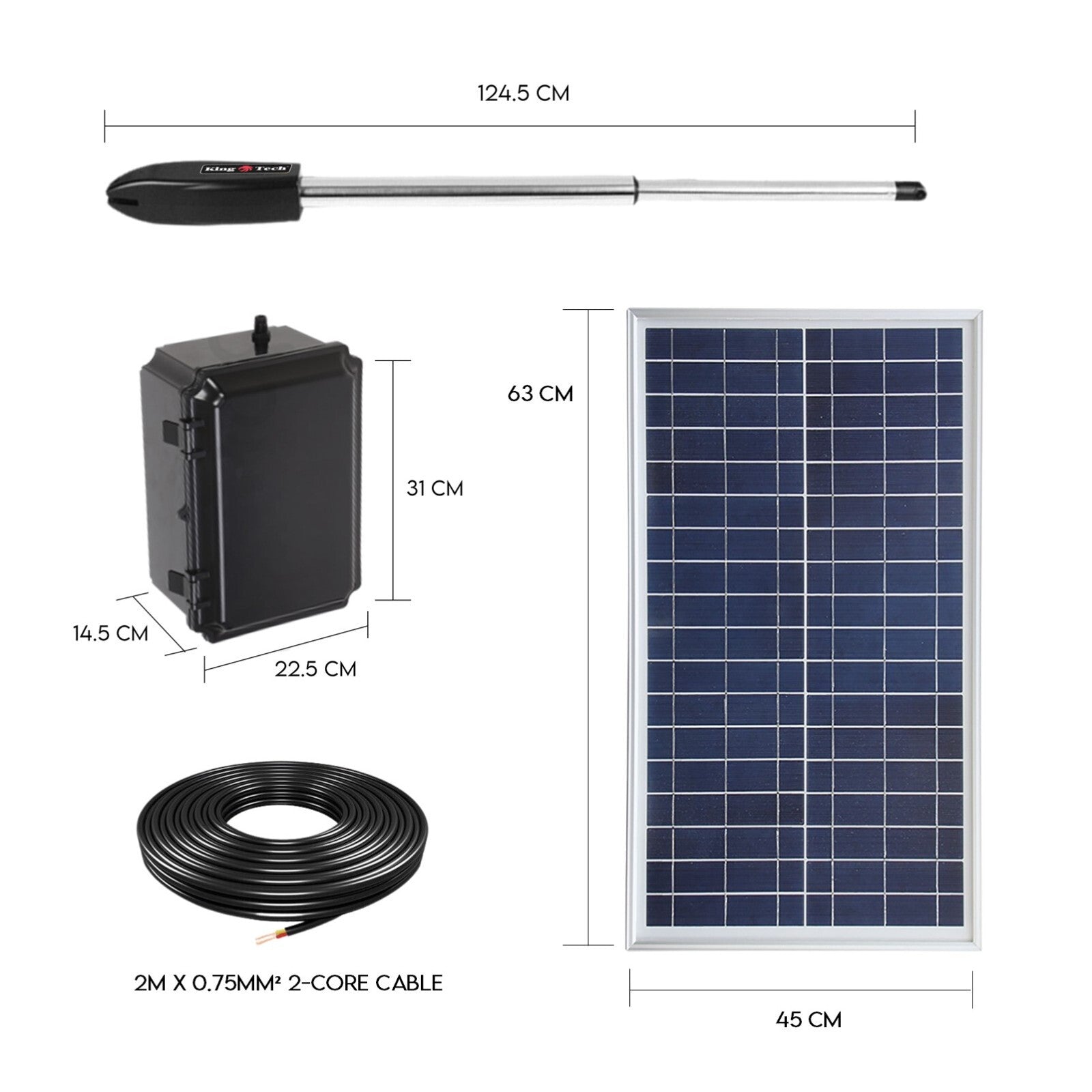

IN THE BOX

1 - Solar Single Swing Gate Opener
3 - Remote controls
1 - Motor
1 - Control panel
1 - Hardware accessories
1 - Solar panel with Bracket

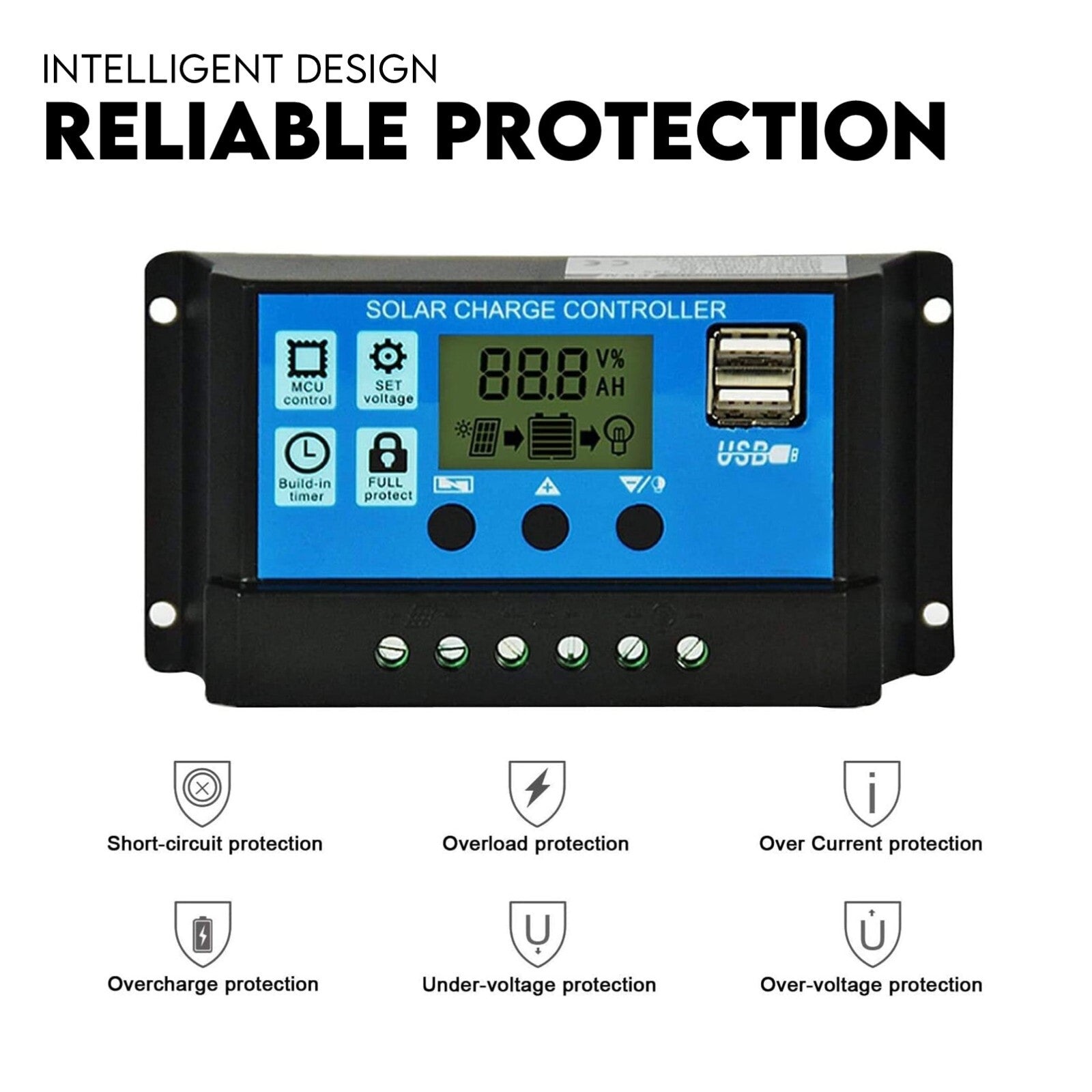

1 - Solar charger controller
2 - Backup batteries 12V 9AH
1 - Photocell
2 - Battery terminal connectors
1 - Battery terminal wire
1 - 2m x 0.75mm² 2-core cable for solar system
1 - Wireless Keypad

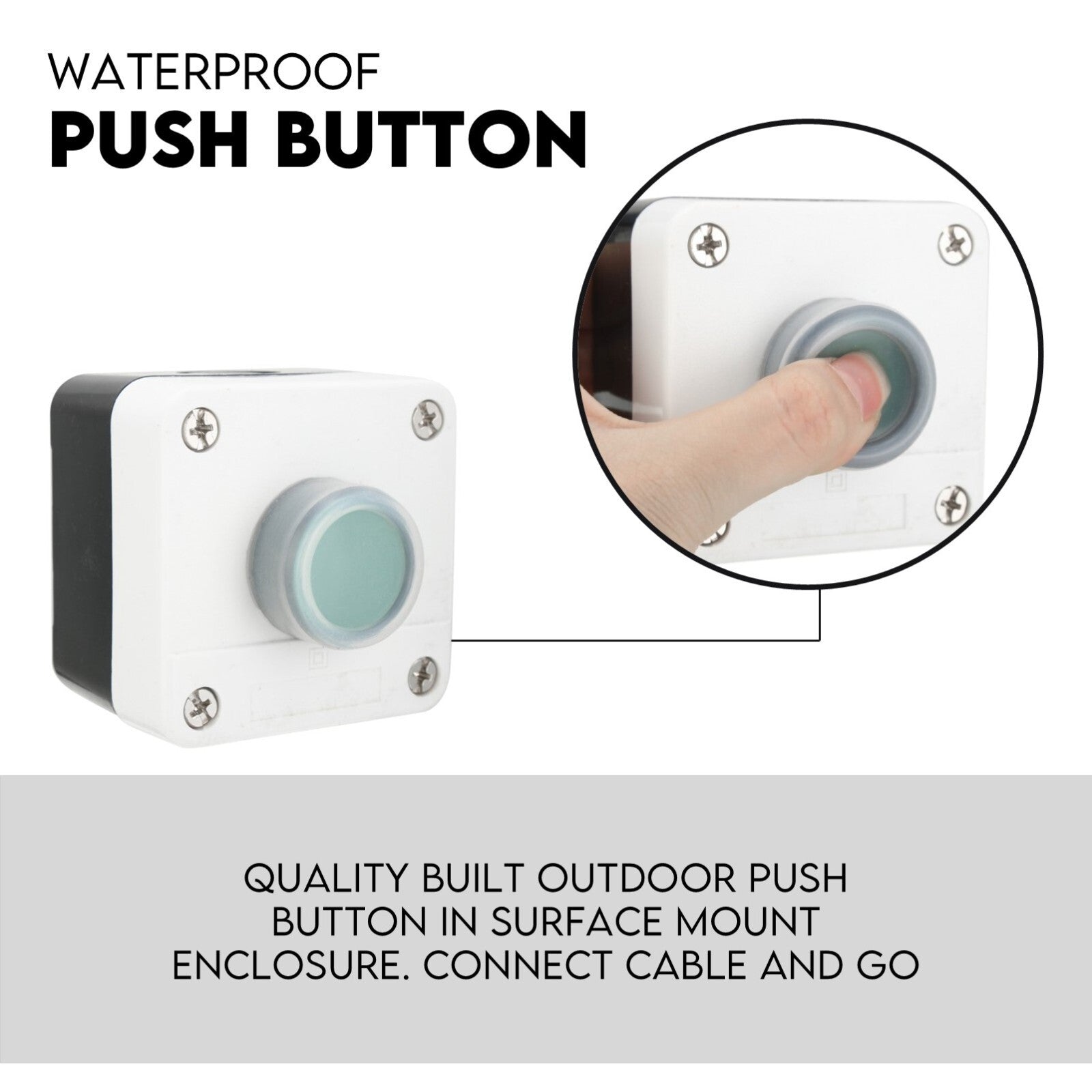

1 - Wired Push Button
